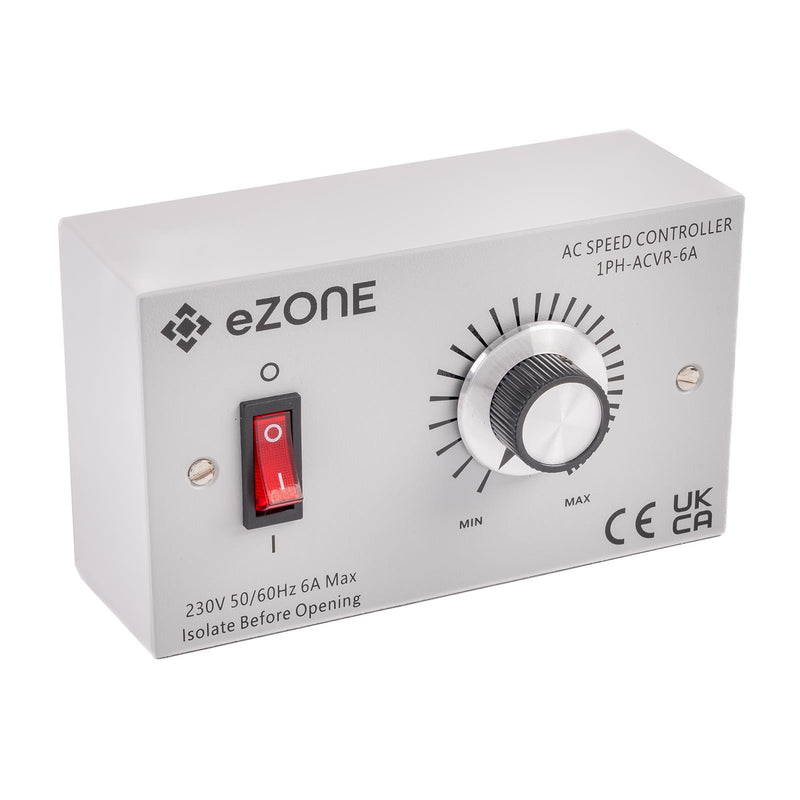

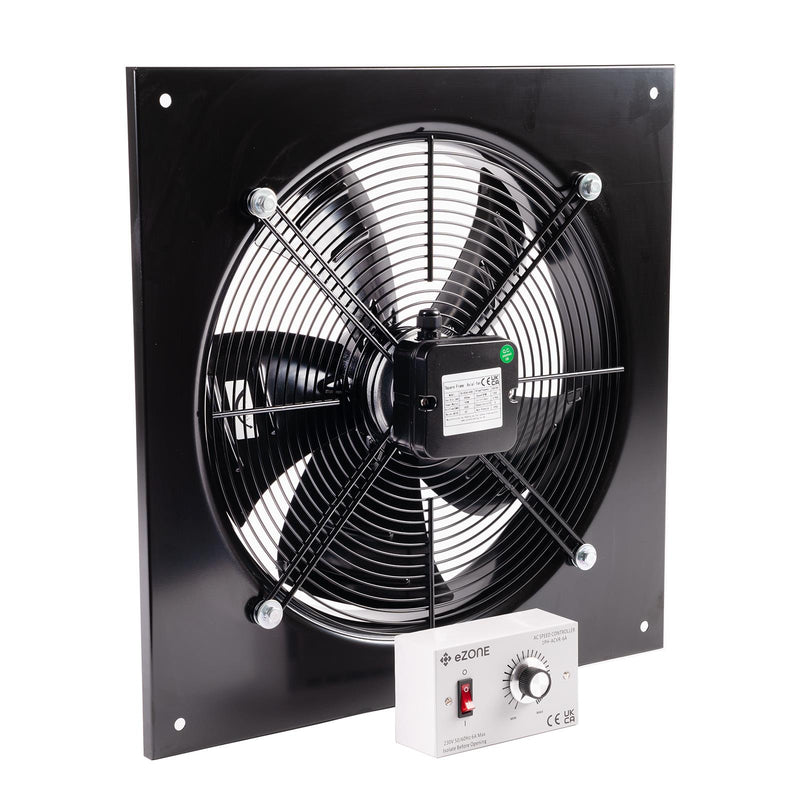

This Fan Speed Controller can be used with most single-phase industrial extractor fans (such as Flakt Woods, S&P, Vent-Axia and Oxberg sold by eZone) which are utilised in building ventilation such as in restaurants, takeaways, warehouses, factories, and other commercial settings.
For the installation and operation manual please click HERE
Product Features:
- Electronic Single-Phase Speed Controller.
- CE Marked: tested and certified to be in compliant with the with the relevant EC Council Directive 2014/30/EU on Electromagnetic Compatibility & Low Voltage Directives 2014/35/EU.
- The controller is designed for continuous operation at 6.0 Amp maximum load at 40⁰ C ambient, on a single phase 230V, 50/60Hz supply.
- Wall Box Supplied.
- ON/OFF Switch.
- Speed Regulation Control Knob.
Important Notes:
- Must be installed by a qualified electrician.
- Installer must follow the controller’s “INSTALLTION AND OPERATING INSTRUCTIONS”.
- Minimum speed must be set initially by adjusting the internal potentiometer on the controller PCB.
-
SKU |
EZ01318 |
BARCODE |
5060915660022 |
MANUFACTURER |
eZone |
BRAND |
eZone |
MPN |
1PH-ACVR-6A |
UNIT QUANTITY |
1 |
UNIT TYPE |
Unit |
WEIGHT |
500 g |
